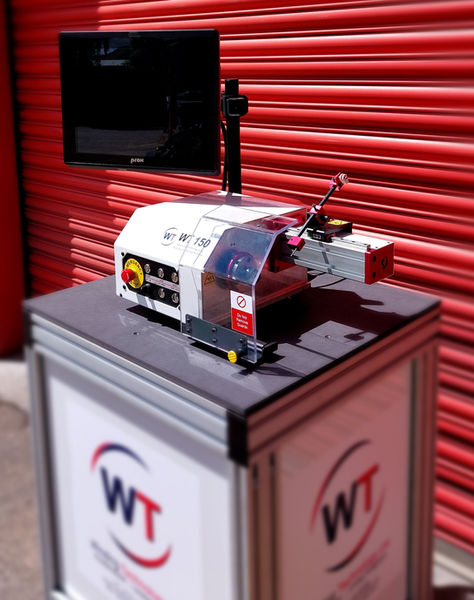

A compact bench-top machine

The WT 150 machine is a small bench mounted coil winding machine specifically designed for the production of small size coils and transformers. It is made of a high quality aluminium framework and robust mechanical parts.The main spindle is driven by a 750W servo motor, with a choice of speed and torque options. The wire guide carriage is mounted on a precision linear rail and is driven by a 100W servo motor and precision ball screw. An encoder on the main spindle provides high performance and exact movement of the wire guide.

Watch our video below

The WT 150 machine is supplied with the following parts as standard:

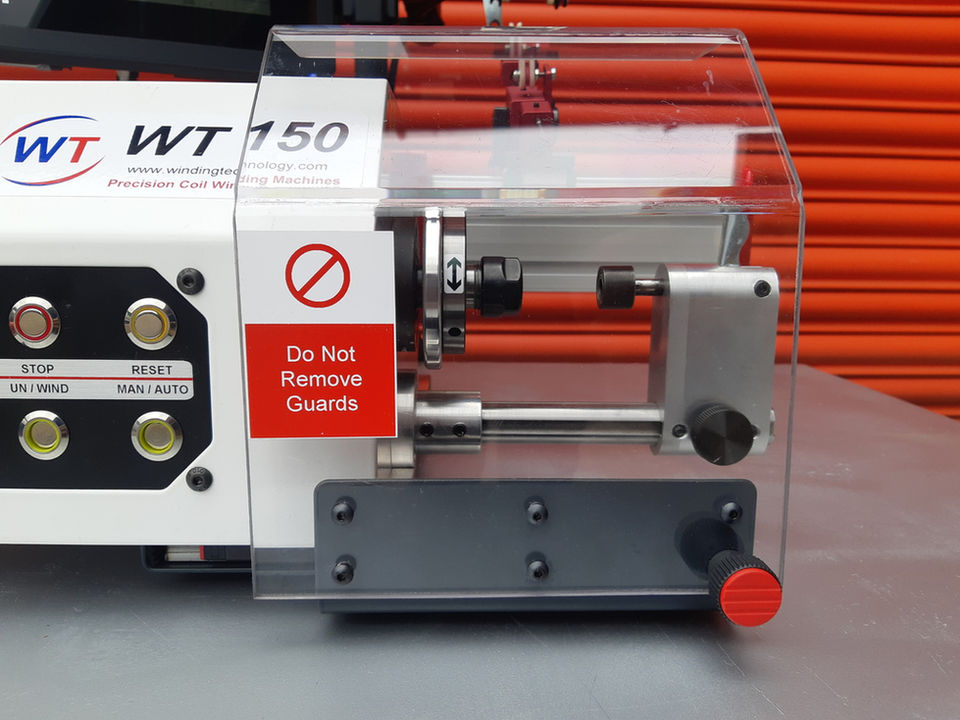

  • Machine headstock including winding spindle, faceplate & ER16 collet chuck.

  • Traverse system including 1x wire guide

  • Safety guard

  • PCWM control system & PC with touch screen

  • Push button control panel

  • Foot pedal incorporating pedals for speed control slow speed and brake release

  • Tailstock (optional)

Coil Diameter: 100 mm

Winding Length: 120 mm

Pitch Range: 0.001 to 50.00

Interested in purchasing a machine?

Click the link below to make an enquiry about this product or request a quote.
