A heavy-duty floor standing machine
The WT1500 machine is a heavy duty floor standing machine suitable for the production of large size coils & transformers. The machine is available with 3 separate modules, the winding head, the tailstock support and traversing wire guide system. This modular system allows the flexibility to build each machine to suit the customer’s specific requirements.
The WT 1200 machine is available in the following models:
Model A: Comprising of the winding head module only, it is supplied as a stand-alone unit complete with our simple turns counter control system, and speed control foot pedal.

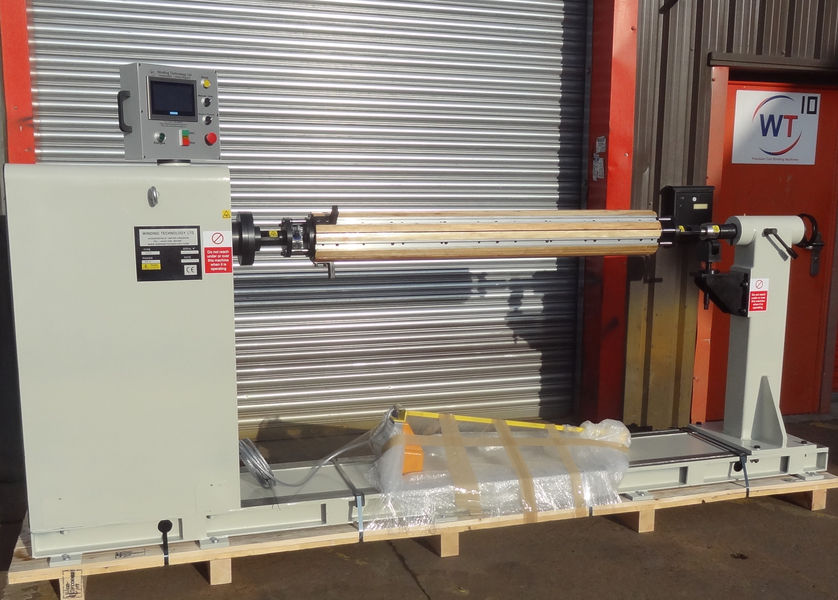

Model B: Comprising of the winding head and tailstock support modules. The tailstock can be used to support larger coils. The tailstock mounts to a machined flat base, and the position can be adjusted along the length of the base.

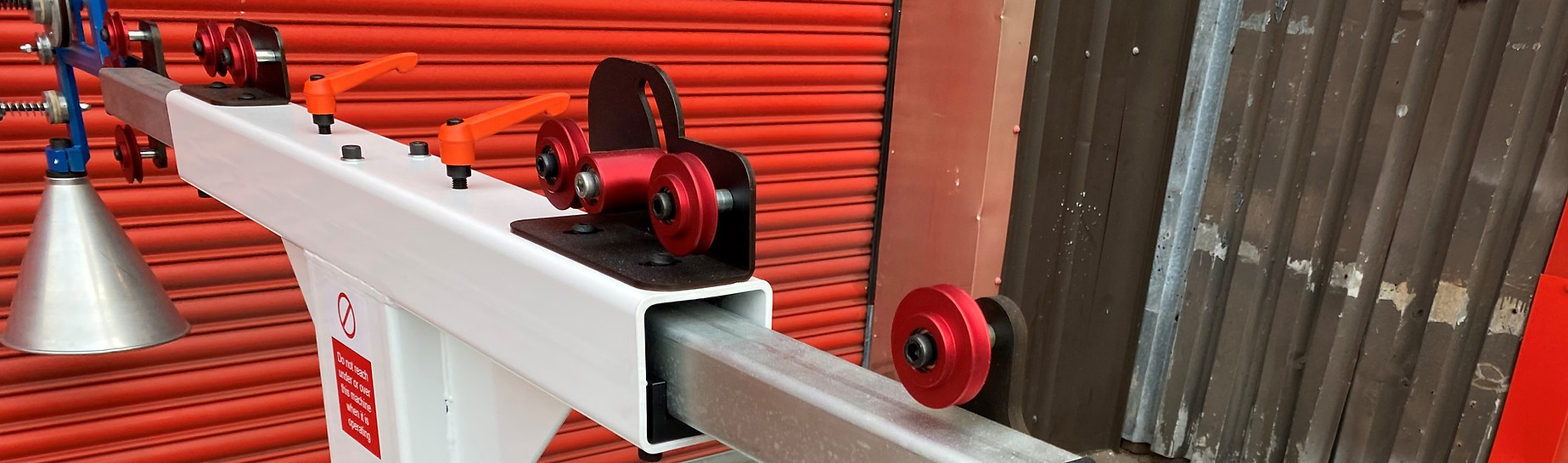

Model C: Comprising of the winding head, tailstock & traverse system modules. A variety of traverse systems are available, from standard wire guide systems to traversing tension systems. The model C is supplied with our PCWM control system.
Model A:
Coil Diameter: 1500 mm
Winding Length: 500 mm
Centre Distance: n/a
Max Load: 500 KG
Pitch Range: n/a
Model B:
Coil Diameter: 1500 mm
Winding Length: 1800 mm
Centre Distance: 2000 mm
Max Load: 2000 KG
Pitch Range: n/a
Model C:
Coil Diameter: 1500 mm
Winding Length: 1800 mm
Centre Distance: 2000 mm
Max Load: 2000 KG
Pitch Range: 0.001 to 150.00
