A floor standing coil winding machine

The WT 500 is a floor standing coil winding machine suitable for the production of medium size coils
and transformers. It is made of a high quality steel framework and robust mechanical parts. The main spindle is driven by a 2.2kW motor, with a 2 step gear box and HDT pulley reduction fitted as standard to give a large

range of speeds and torques. The wire guide carriage is mounted on chrome steel linear guides and is driven by a 400W servo motor and precision ball screw. An encoder on the main spindle provides
high performance and exact movement of the wire guide.

Browse our video gallery below

WT500 High Voltage Windings

WT500 High Voltage Windings

Play Video

The WT 500 machine is supplied with the following parts as standard:

  • Fabricated steel base and machined aluminium bed

  • 2 speed gearbox including winding spindle, faceplate & 3 jaw chuck

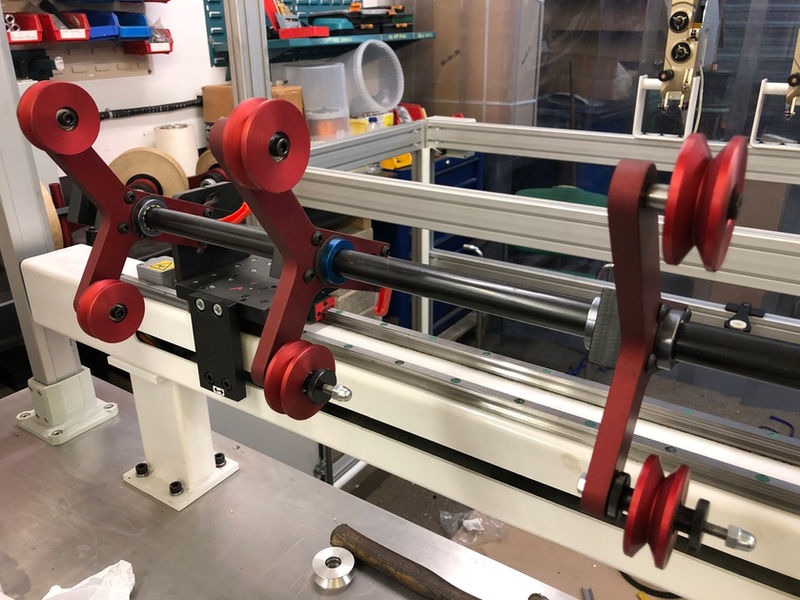

  • Traverse unit including a double wire
    guide system suitable for round and flat wires

  • Interlocking safety guard

  • PCWM control system & PC with touch screen

  • Push button control panel

  • Foot pedal incorporating pedals for

  • speed control slow speed and brake release

  • Tailstock support with quick release action

Coil Diameter: 500 mm

Winding Length: 850 mm

Centre Distance: 900 mm

Max Load: 500 KG

Pitch Range: 0.001 to 150.00

Interested in purchasing a machine?

Click the link below to make an enquiry about this product or request a quote.
